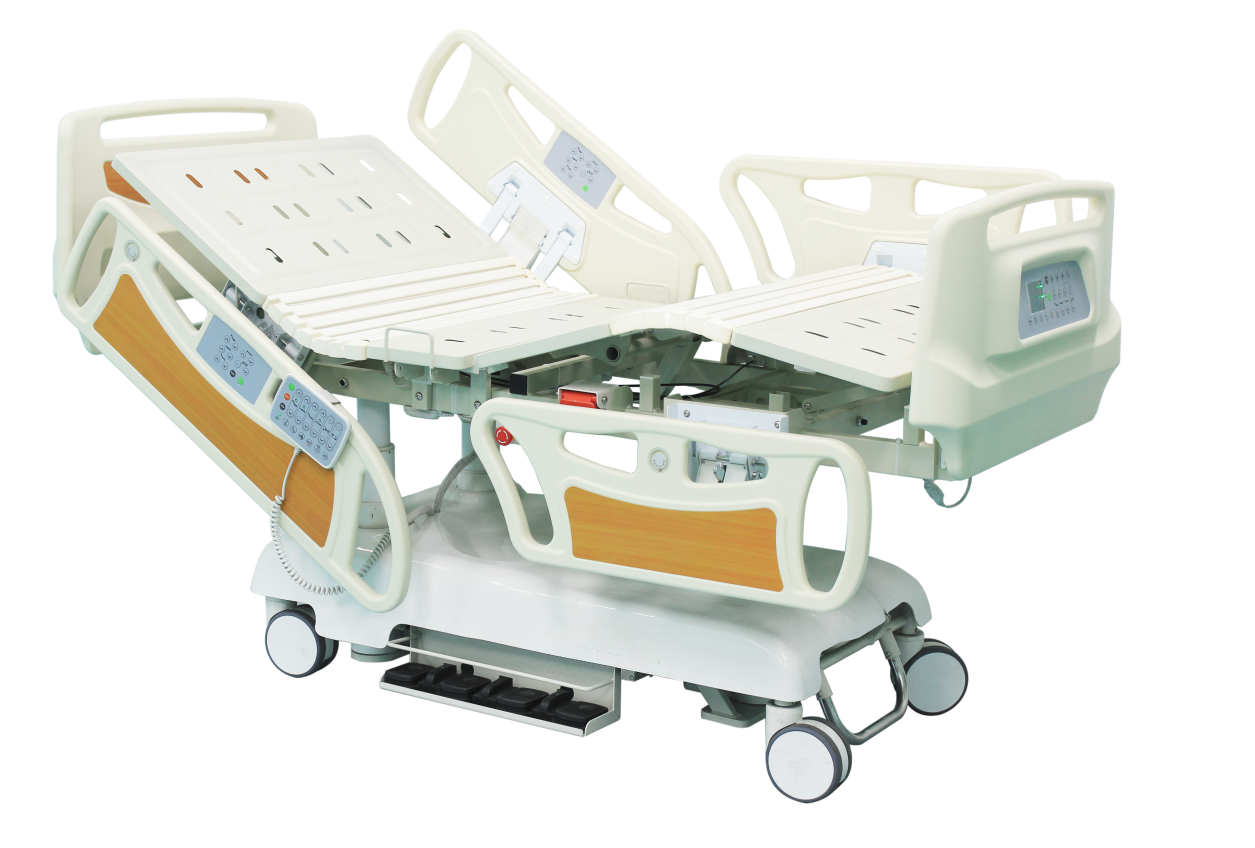

DH-III Seven-Function Electric Hospital Bed with Weighing & Thrombolysis Features
Product Overview
The DH-III Seven-Function Electric Hospital Bed is engineered for advanced clinical care, particularly in scenarios requiring precise patient monitoring and positioning, such as post-operative recovery and thrombolysis therapy. Its standout feature is an integrated high-accuracy weighing system (±0.2kg) with an out-of-bed alarm, providing critical data for patient management. The bed offers seven core electric adjustments—including backrest, leg rest, height, tilt, lateral turning, back-leg linkage, and one-touch CPR—all controlled via a user-friendly nurse panel. Constructed with antibacterial HDPE components and a robust steel frame, it combines hygiene, durability, and multifaceted functionality to support both patient comfort and clinical efficiency.
Key Features & Specifications
-
Seven Electric Functions: Comprehensive positioning including backrest (0-70°), leg rest (0-40°), height (550-850mm), front/back tilt (0-14°), left/right turn (0-18°), back-leg linkage, and one-touch CPR/Trendelenburg.
-
Integrated Weighing System: High-precision scale with ≤0.2kg accuracy and 0-150kg range, featuring an automatic out-of-bed alarm for enhanced patient safety.
-
Enhanced Hygiene & Comfort: Bed surface features oval perforations (50x20mm) for improved ventilation; constructed with antibacterial, easy-to-clean HDPE headboards, footboards, and guardrails.
-
Superior Safety Design: Full-coverage four-segment guardrails equipped with a damping system for smooth, quiet operation and ball-type angle indicators (30°/45°).
-
Reliable Power & Control: Includes a built-in battery for backup operation during power outages. Features multiple control points: nurse handset, side panels, and lockable foot pedals.
-
Stable Mobility: 125mm central control casters with three modes (lock, free, steer) for secure positioning and easy maneuvering.
Technical Parameters Table
| Item |
Specification |
Item |
Specification |
| Overall Dimensions (LxW) |
2200 x 1050 mm |
Backrest Adjustment |
0 - 70° (+5°) |
| Bed Surface (LxW) |
1960 x 900 mm |
Leg Rest Adjustment |
0 - 40° (+5°) |
| Height Adjustment Range |
550 - 850 mm (±50mm) |
Front/Back Tilt |
0 - 14° (±2°) |
| Left/Right Turn |
0 - 18° (±2°) |
Weighing Accuracy |
≤ 0.2 kg |
| Weighing Range |
0 - 150 kg |
Motor Noise Level |
< 50 dB |
Standard Configuration List
-
Electric Control System (with Nurse Handset) x 1
-
HDPE Headboard & Footboard x 1 each
-
HDPE Four-Segment Guardrails x 4
-
High-Precision Weighing System x 1
-
Built-in Backup Battery x 1
-
Central Control Wheels (125mm) x Set
-
IV Pole Sockets (with stainless steel racks) x 4
-
Drainage Bag Hooks x 2
Our Commitment to Quality
We specialize in manufacturing professional medical furniture, focusing on innovation that addresses real clinical needs. Our production process adheres to strict quality control protocols, utilizing electrostatic powder coating for durability and offering a range of colors. We understand the importance of reliable equipment in healthcare settings and are dedicated to providing products that ensure patient safety and caregiver convenience. From secure, customized packaging to partnering with efficient global logistics providers, we ensure your product arrives in perfect condition, ready for service.
